DING ZING DZ® Seals

ME-1N

R ≦ 0.3
Rod Ø d Surface Roughness: 0.8~1.6 μ mRmax (0.2~0.4 μ mRa)

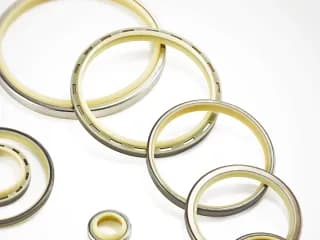

Types of Metal Clad Wiper ME-1N

Items Ø d Ø D t h H
ME-1N 25 37 6 9 6
ME-1N 30 42 6 9 6
ME-1N 35 47 7 10 7
ME-1N 40 52 7 10 7
ME-1N 45 57 7 10 7
ME-1N 50 62 7 10 7
ME-1N 50 62 8 12 8
ME-1N 55 69 8 12 8
ME-1N 60 74 8 12 8
ME-1N 65 79 8 12 8
ME-1N 70 84 8 12 8
ME-1N 75 89 8 12 8
ME-1N 80 94 8 12 8
ME-1N 85 99 8 12 8
ME-1N 90 104 8 12 8
ME-1N 95 109 8 12 8
Items Ø d Ø D t h H
ME-1N 100 114 8 12 8
ME-1N 105 121 9 12.5 9
ME-1N 110 126 9 12.5 9
ME-1N 115 131 9 12.5 9
ME-1N 120 136 9 12.5 9
ME-1N 125 141 9 12.5 9
ME-1N 130 146 9 12.5 9
ME-1N 135 150 8 11 8
ME-1N 140 160 10 14.5 10
ME-1N 150 170 10 14.5 10
ME-1N 160 180 10 14.5 10
ME-1N 165 185 10 14.5 10
ME-1N 170 190 10 14.5 10
ME-1N 175 190 10 14.5 10
