DING ZING DZ® Seals

Metal Clad Wiper Seals

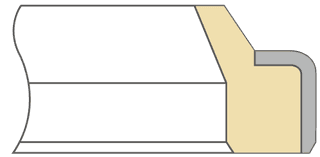

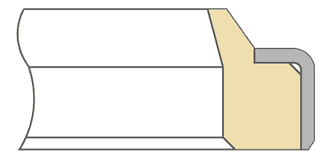

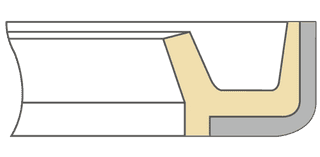

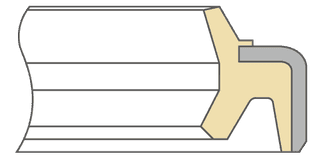

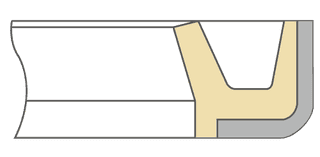

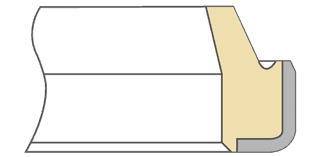

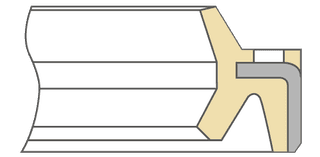

DingZing offers 7 types of DING ZING DZ® metal clad wipers: ME-1, ME-1N, ME-2, ME-3, ME-4, ME-5, and ME-8. These wipers are tough and provide high abrasion resistance, while effectively keeping dirt and dust away from cylinders.

Features

Mechanical Properties
- Material: TPU + SPCC
- Specific Gravity (ASTM D792): 1.20
- Hardness (ASTM D2240): 95
- Tensile Strength (ASTM D412): 317
- 100% Modulus (ASTM D412): 110
- 300% Modulus (ASTM D412): 170
- Compression Set 70h/70ºC (ASTM D395B): 34
- Compression Set 70h/100ºC (ASTM D395B): 56
Oil Resistance
- Testing Oil: Hydraulic Oil 46#
- Testing Temperature (ºC): 100
- Testing Time (Hour): 100
- Hardness Variation (Shore A): -1
- Tensile Strength Variation (%): -4
- Volume Variation (%): +0.08
Working Conditions
- Working Speed: 0.03 ~ 0.5 m/sec
- Working Temperature: -20ºC ~ 100ºC

Files Download

The data and information provided are for reference only; please contact us to confirm details.
